DIN 605 (4.8, 8.8, 10.9) ČSN 02 1327 (4.8, 8.8, 10.9) The countersunk square bolts with long square

DIN 605 (4.8, 8.8, 10.9)

ČSN 02 1327 (4.8, 8.8, 10.9) The countersunk square bolts with long square

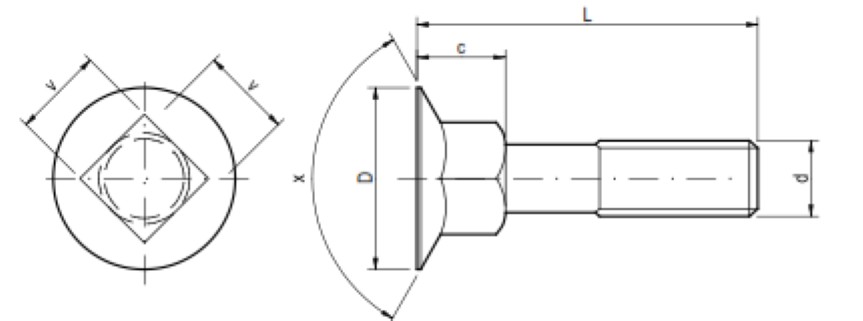

d	c	D	x	v
M 6	7,00	16,00	120°	6,00
M 8	9,00	20,00	120°	8,00
M 10	11,00	24,00	120°	10,00
M 12	14,00	28,00	120°	12,00

Packed in boxes/pcs		Packaging/pcs
6 x 30	DIN 605 (4.8, 8.8, 10.9)	300
6 x 35	DIN 605 (4.8, 8.8, 10.9)	300
6 x 40	DIN 605 (4.8, 8.8, 10.9)	250
6 x 45	DIN 605 (4.8, 8.8, 10.9)	200
6 x 50	DIN 605 (4.8, 8.8, 10.9)	200
6 x 55	DIN 605 (4.8, 8.8, 10.9)	300
6 x 60	DIN 605 (4.8, 8.8, 10.9)	300

8 x 30	DIN 605 (4.8, 8.8, 10.9)	200
8 x 35	DIN 605 (4.8, 8.8, 10.9)	150
8 x 40	DIN 605 (4.8, 8.8, 10.9)	150
8 x 45	DIN 605 (4.8, 8.8, 10.9)	250
8 x 50	DIN 605 (4.8, 8.8, 10.9)	250
8 x 55	DIN 605 (4.8, 8.8, 10.9)	200
8 x 60	DIN 605 (4.8, 8.8, 10.9)	200
8 x 65	DIN 605 (4.8, 8.8, 10.9)	200
8 x 70	DIN 605 (4.8, 8.8, 10.9)	150
8 x 75	DIN 605 (4.8, 8.8, 10.9)	150
8 x 80	DIN 605 (4.8, 8.8, 10.9)	150

10 x 40	DIN 605 (4.8, 8.8, 10.9)	200
10 x 45	DIN 605 (4.8, 8.8, 10.9)	150
10 x 50	DIN 605 (4.8, 8.8, 10.9)	150
10 x 55	DIN 605 (4.8, 8.8, 10.9)	150
10 x 60	DIN 605 (4.8, 8.8, 10.9)	100
10 x 65	DIN 605 (4.8, 8.8, 10.9)	100
10 x 70	DIN 605 (4.8, 8.8, 10.9)	100
10 x 75	DIN 605 (4.8, 8.8, 10.9)	100
10 x 80	DIN 605 (4.8, 8.8, 10.9)	100
10 x 90	DIN 605 (4.8, 8.8, 10.9)	80
10 x 100	DIN 605 (4.8, 8.8, 10.9)	60

12 x 50	DIN 605 (4.8, 8.8, 10.9)	100
12 x 55	DIN 605 (4.8, 8.8, 10.9)	80
12 x 60	DIN 605 (4.8, 8.8, 10.9)	80
12 x 65	DIN 605 (4.8, 8.8, 10.9)	80
12 x 70	DIN 605 (4.8, 8.8, 10.9)	60
12 x 75	DIN 605 (4.8, 8.8, 10.9)	60
12 x 80	DIN 605 (4.8, 8.8, 10.9)	60
12 x 90	DIN 605 (4.8, 8.8, 10.9)	50
12 x 100	DIN 605 (4.8, 8.8, 10.9)	50
