ISO 5713 (12.9) KV 4,0 Plough bolts with height of head 4,0 mm, 2 nibsand with nuts DIN 934 (10.9)

ISO 5713 (12.9) KV 4,0

Plough bolts with height of head 4,0 mm, 2 nibsand with nuts DIN 934 (10.9)

THE MOST PARTICULAR USE

The bolts to machinery of KVERNELAND

The most often used bolt - KVERNELAND 12 x 35

Specifications

Packaging

Specification in PDF

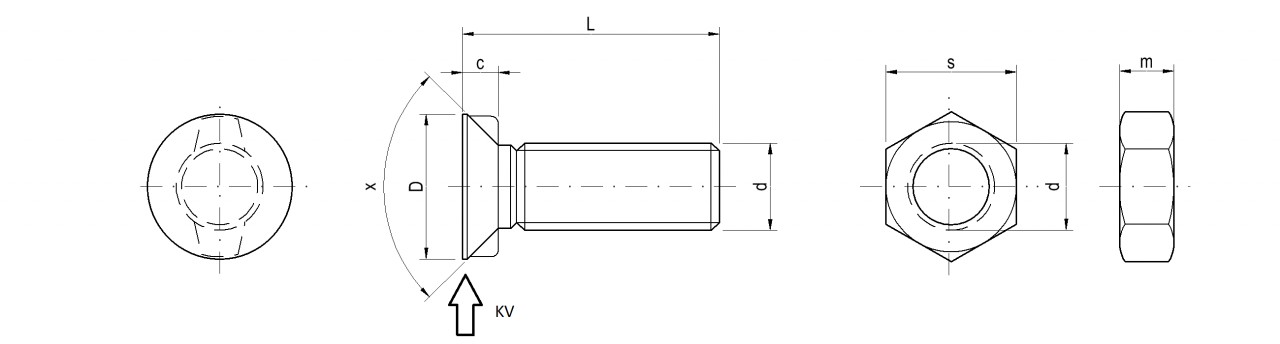

d	c	D	x	s	m
M 12 KV 4,0	8,00	20,00	90°	19,00	10,00

The bolts ISO 5713 do fit to machinery of OEM KVERNELAND, ÖVERUM, PÖTTINGER, LANDSBERG, NIEMEYER, RABE, OVLAC, KÖCKERLING, FARMET, BEDNAR, ROSS, PHX, UNIA GRUDZIADZ, OPALL AGRI, and many others

Packed in boxes / pcs		Packaging without nuts	Packaging with nuts

12 x 30	ISO 5713 (12.9) KV 4	100	50/50
12 x 35	ISO 5713 (12.9) KV 4	100	50/50
12 x 40	ISO 5713 (12.9) KV 4	150	100/100
12 x 45	ISO 5713 (12.9) KV 4	150	100/100
12 x 50	ISO 5713 (12.9) KV 4	100	100/100
12 x 60	ISO 5713 (12.9) KV 4	90	50/50
12 x 70	ISO 5713 (12.9) KV 4	80	50/50
12 x 80	ISO 5713 (12.9) KV 4	60	50/50
12 x 90	ISO 5713 (12.9) KV 4	50	50/50
12 x 100	ISO 5713 (12.9) KV 4	50	50/50

We are fast. Receive an offer no later than 24 hours from placing of your request. The produced bolts will be marked by your logo. Invoice with due date also for the new customers. We communicate in english, russian and polish languages.
