ISO 5713 BH - BIG HEAD (12.9) Plough bolts with big head and 2 nibsand with nuts DIN 934 (10.9)

ISO 5713 BH - BIG HEAD (12.9)

Plough bolts with big head and 2 nibsand with nuts DIN 934 (10.9)

THE MOST PARTICULAR USE

The bolts to machinery of KVERNELAND

The most often used bolt - Kverneland 10 x 35.

Specifications

Packaging

Specification in PDF

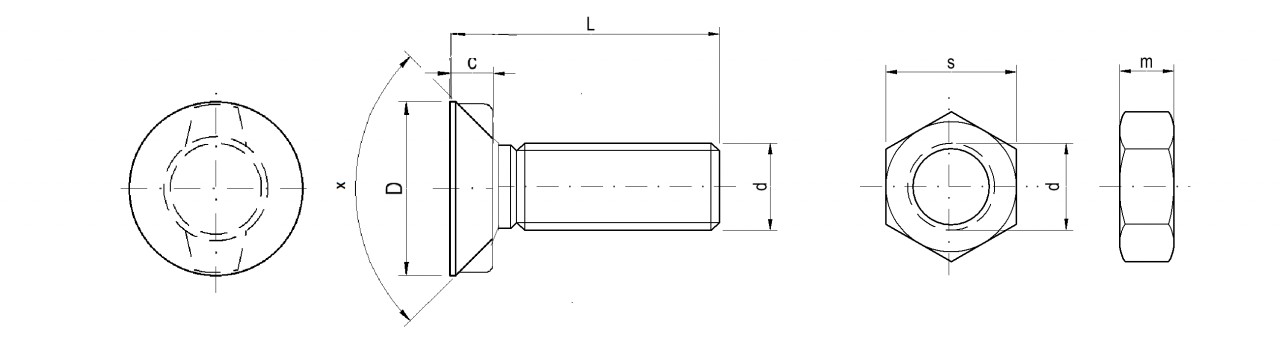

d	c	D	x	s	m
M 10	6,50	20,00	90°	17,00	8,00

The bolts ISO 5713 do fit to machinery of OEM KVERNELAND.

Packed in boxes / pcs		Packaging without nuts	Packaging with nuts
10 x 25	ISO 5713 BH (12.9)	200	150/150
10 x 30	ISO 5713 BH (12.9)	150	100/100
10 x 35	ISO 5713 BH (12.9)	150	100/100
10 x 40	ISO 5713 BH (12.9)	100	100/100
10 x 45	ISO 5713 BH (12.9)	100	50/50
10 x 50	ISO 5713 BH (12.9)	100	50/50
10 x 60	ISO 5713 BH (12.9)	150	100/100
10 x 70	ISO 5713 BH (12.9)	150	100/100
10 x 80	ISO 5713 BH (12.9)	100	50/50

We are fast. Receive an offer no later than 24 hours from placing of your request. The produced bolts will be marked by your logo. Invoice with due date also for the new customers. We communicate in english, russian and polish languages.
