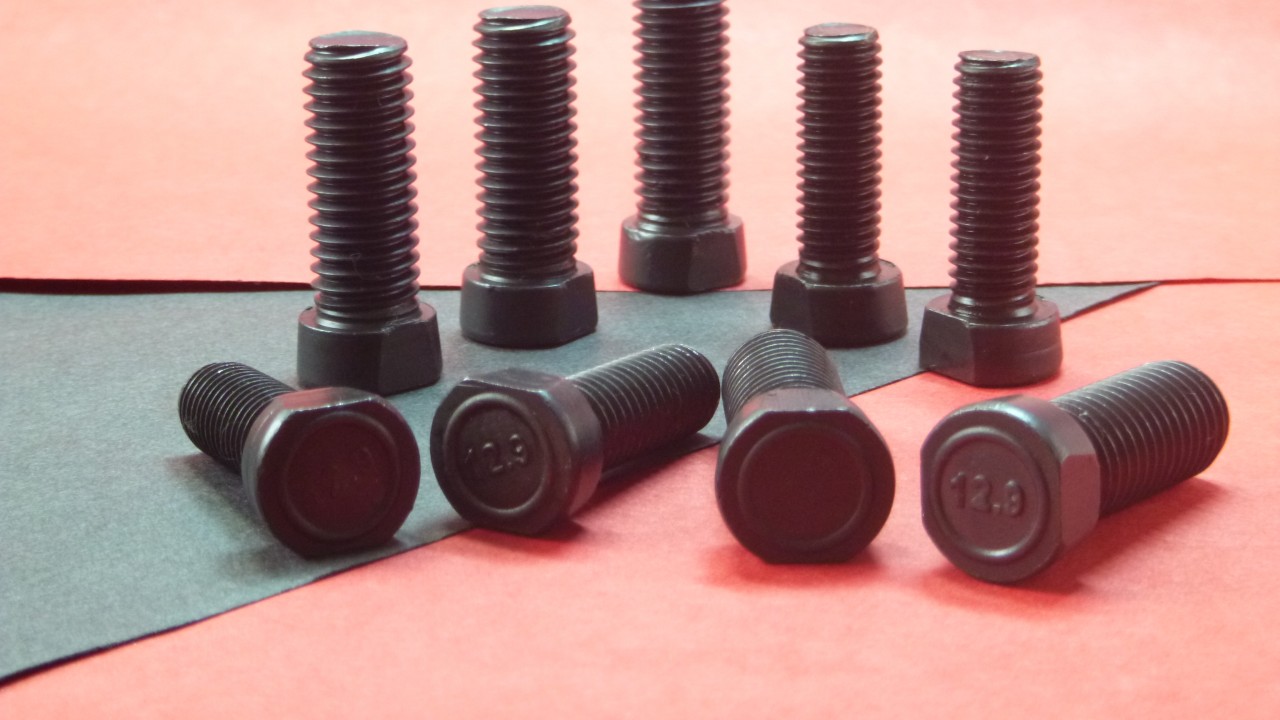

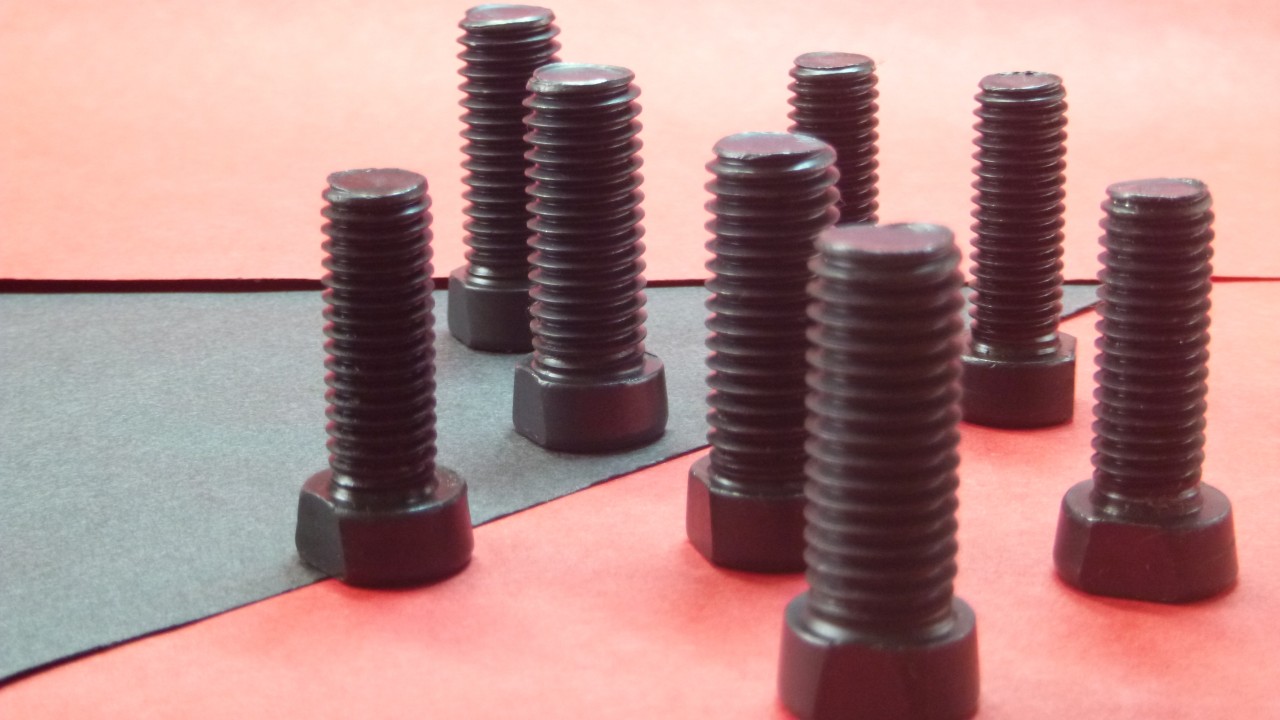

MP - 2 (10.9, 12.9) Plough bolts with conical head with nuts DIN 934 (10.9)

MP - 2 (10.9, 12.9)

Plough bolts with conical head with nuts DIN 934 (10.9)

THE MOST PARTICULAR USE

The bolts to machinery of KVERNELAND

The most often used OEM codes are Kverneland: KK013228 M12 x 34, KK013234 M12 x 38

Specifications

Packaging

Specification in PDF

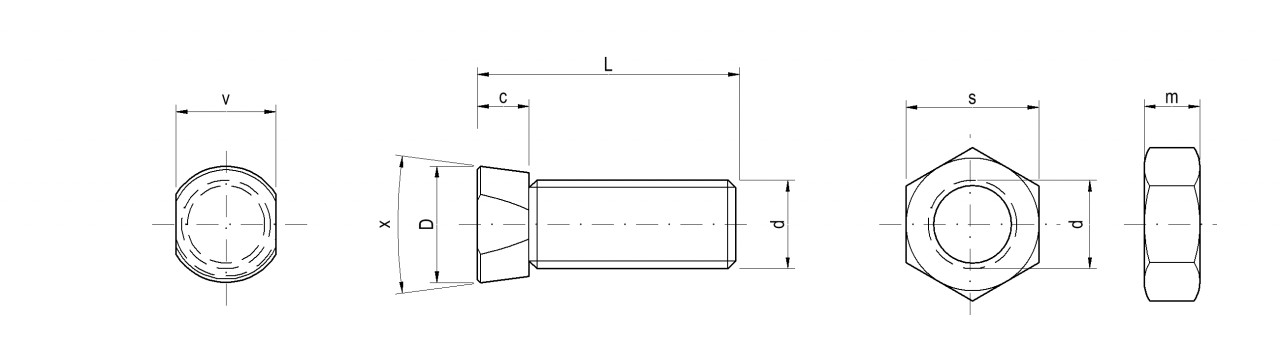

d	c	D	x	v	s	m
M 10	7,00	15,90	15°	13,50	17,00	8,00
M 12	7,00	15,90	15°	13,50	19,00	10,00

The bolts MP - 2 do fit to machinery of OEM KVERNELAND, ÖVERUM, PÖTTINGER, LANDSBERG, LEMKEN, NIEMEYER, RABE, OVLAC, KÖCKERLING, FARMET, BEDNAR, ROSS PHX, UNIA GRUDZIADZ, OPALL AGRI and many others.

Packed in boxes / pcs		Packing without nuts	Packaging with nuts

10 x 25	MP – 2 10.9, 12.9	100	100/100
10 x 30	MP – 2 10.9, 12.9	100	100/100
10 x 35	MP – 2 10.9, 12.9	100	100/100
10 x 40	MP – 2 10.9, 12.9	100	100/100

12 x 30	MP – 2 10.9, 12.9	150	100/100
12 x 33	MP – 2 10.9, 12.9	150	100/100
12 x 34	MP – 2 10.9, 12.9	150	100/100
12 x 35	MP – 2 10.9, 12.9	150	100/100
12 x 37	MP – 2 10.9, 12.9	100	50/50
12 x 38	MP – 2 10.9, 12.9	100	50/50
12 x 40	MP – 2 10.9, 12.9	100	50/50
12 x 42	MP – 2 10.9, 12.9	100	50/50
12 x 45	MP – 2 10.9, 12.9	100	50/50
12 x 50	MP – 2 10.9, 12.9	100	50/50
12 x 55	MP – 2 10.9, 12.9	50	50/50
12 x 60	MP – 2 10.9, 12.9	50	50/50
12 x 70	MP – 2 10.9, 12.9	50	50/50
12 x 80	MP – 2 10.9, 12.9	50	50/50
12 x 90	MP – 2 10.9, 12.9	50	50/50
12 x 100	MP – 2 10.9, 12.9	50	50/50

We are fast. Receive an offer no later than 24 hours from placing of your request. The produced bolts will be marked by your logo. Invoice with due date also for the new customers. We communicate in english, russian and polish languages.
