MP - 2 - 30° ( 12.9 ) Plough bolts with conical head 30° with nuts DIN 934 ( 10.9 )

MP - 2 - 30° ( 12.9 )

Plough bolts with conical head 30° with nuts DIN 934 ( 10.9 )

THE MOST PARTICULAR USE

The bolts to machinery of VOGEL&NOOT

The most often used bolt 12 x 40

Specifications

Packaging

Specification in PDF

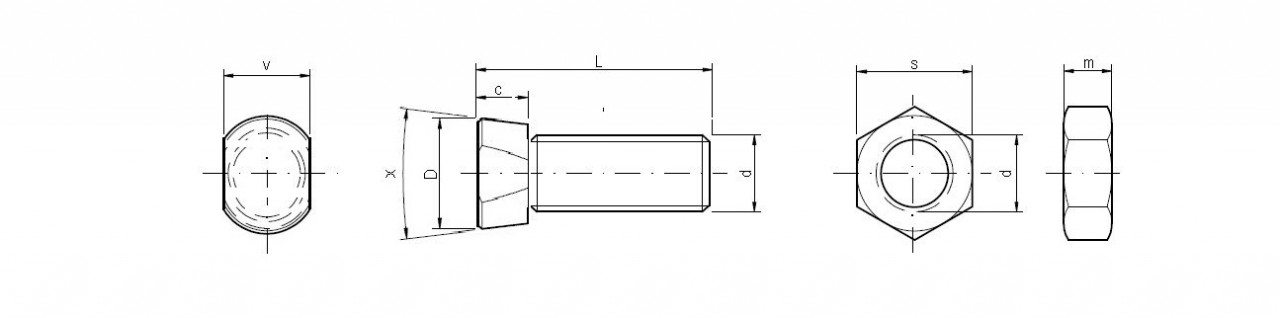

d	c	D	x	v	s	m
M 12	9,00	17,50	30°	13,30	19,00	10,00
M 14	9,00	18,50	30°	14,20	22,00	11,00

The bolts MP - 2 30° do fit to machinery of OEM VOGEL&NOOT, AMAZONE and many others

Packed in boxes / pcs		Packaging without nuts	Packaging with nuts

12 x 30	MP – 2 30° 12.9	150	100/100
12 x 33	MP – 2 30° 12.9	150	100/100
12 x 34	MP – 2 30° 12.9	150	100/100
12 x 35	MP – 2 30° 12.9	150	100/100
12 x 37	MP – 2 30° 12.9	100	50/50
12 x 38	MP – 2 30° 12.9	100	50/50
12 x 40	MP – 2 30° 12.9	100	50/50
12 x 42	MP – 2 30° 12.9	100	50/50
12 x 45	MP – 2 30° 12.9	100	50/50
12 x 50	MP – 2 30° 12.9	100	50/50
12 x 55	MP – 2 30° 12.9	50	50/50
12 x 60	MP – 2 30° 12.9	50	50/50
12 x 70	MP – 2 30° 12.9	50	50/50
12 x 80	MP – 2 30° 12.9	50	50/50
12 x 90	MP – 2 30° 12.9	50	50/50
12 x 100	MP – 2 30° 12.9	50	50/50

14 x 34	MP – 2 30° 12.9	100	50/50
14 x 39	MP – 2 30° 12.9	100	50/50
14 x 40	MP – 2 30° 12.9	50	50/50
14 x 45	MP – 2 30° 12.9	50	50/50
14 x 50	MP – 2 30° 12.9	50	50/50
14 x 60	MP – 2 30° 12.9	50	50/50

We are fast. Receive an offer no later than 24 hours from placing of your request. The produced bolts will be marked by your logo. Invoice with due date also for the new customers. We communicate in english, russian and polish languages.
