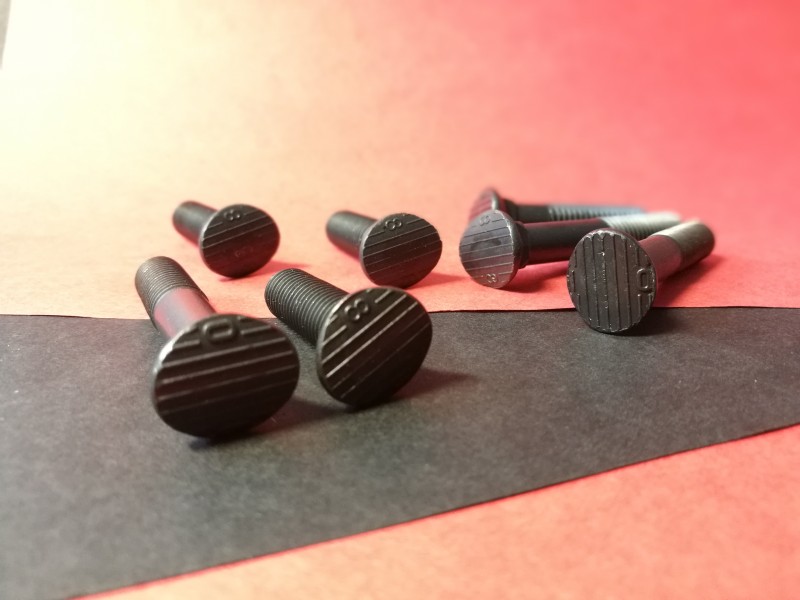

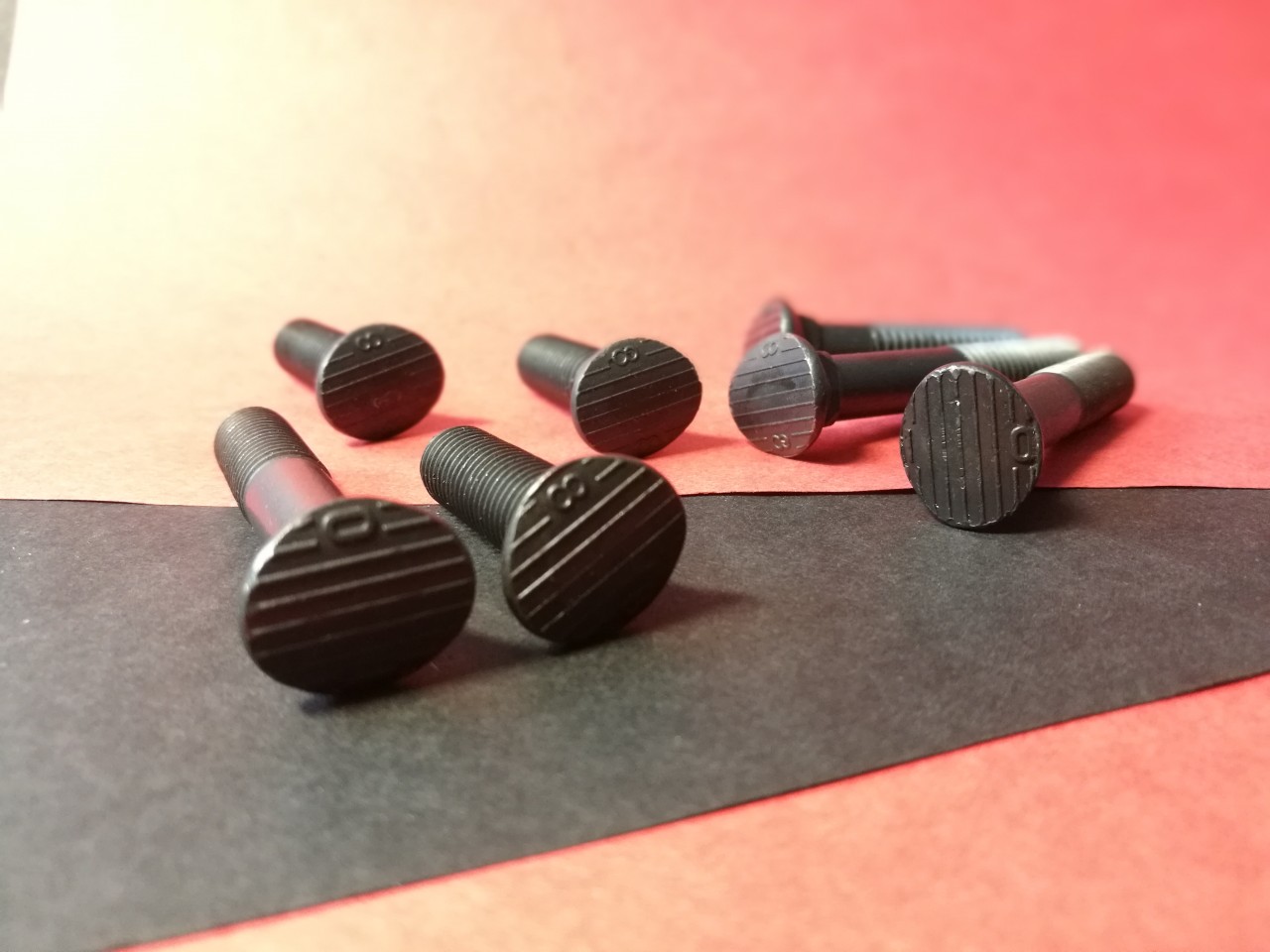

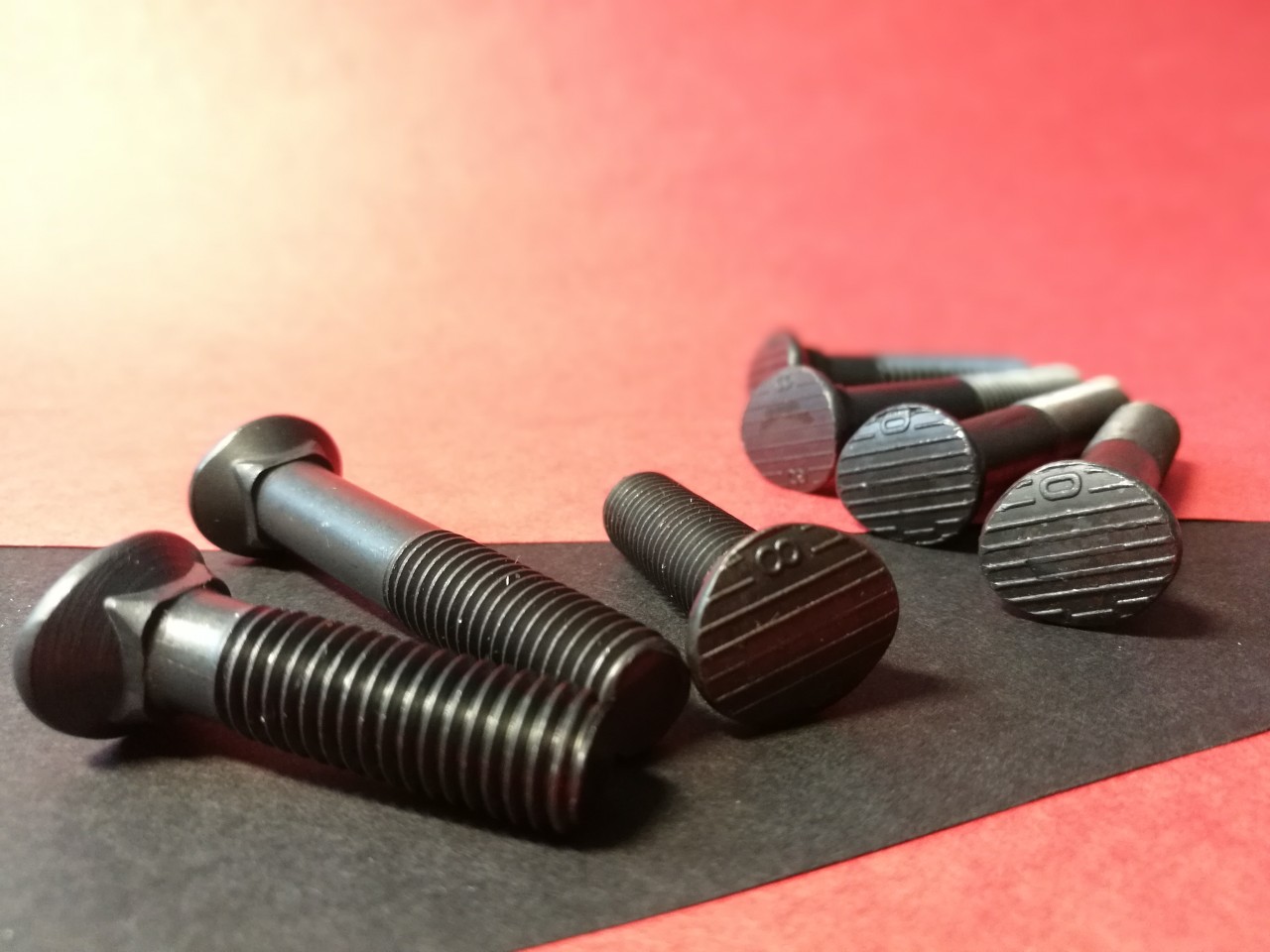

MP - 4 K (8.8 , 10.9, 12.9) Cultivator bolts with conical head and with square neck with nuts DIN 934 (8.8, 10.9)

MP - 4 K (8.8 , 10.9, 12.9)

Cultivator bolts with conical head and with square neck with nuts DIN 934 (8.8, 10.9)

THE MOST PARTICULAR USE

The bolts to cultivator machinery.

The most often used bolt - 10 x 35, 10 x 40, 10 x 60

Specifications

Packaging

Specification in PDF

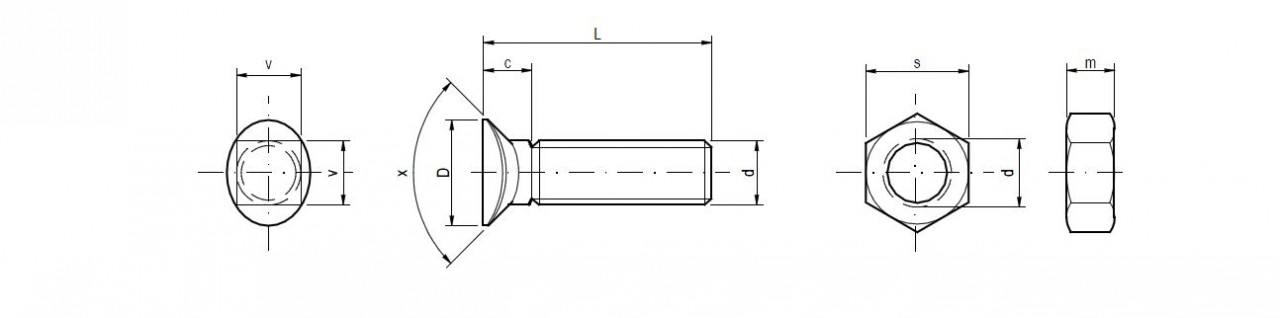

d	c	D	x	v	s	m
M 10	7,60	18,00/16,00	90°	10,00	17,00	8,00

The bolts MP - 4 do fit to machinery of OEM LEMKEN, ÖVERUM, PÖTTINGER, LANDSBERG, KVERNELAND, NIEMEYER, RABE, OVLAC, KÖCKERLING, FARMET, BEDNAR, ROSS, PHX, UNIA GRUDZIADZ, OPALL AGRI, KONGSKILDE and many others.

Packed in boxes / pcs		Packaging without nuts	Packaging with nuts

10 x 30	MP – 4 K 8.8,10.9,12.9	150	100/100
10 x 35	MP – 4 K 8.8,10.9,12.9	150	100/100
10 x 37	MP – 4 K 8.8,10.9,12.9	100	100/100
10 x 40	MP – 4 K 8.8,10.9,12.9	100	100/100
10 x 45	MP – 4 K 8.8,10.9,12.9	100	50/50
10 x 50	MP – 4 K 8.8,10.9,12.9	100	50/50
10 x 55	MP – 4 K 8.8,10.9,12.9	100	50/50
10 x 60	MP – 4 K 8.8,10.9,12.9	150	100/100
10 x 70	MP – 4 K 8.8,10.9,12.9	150	100/100
10 x 80	MP – 4 K 8.8,10.9,12.9	100	50/50
10 x 90	MP – 4 K 8.8,10.9,12.9	80	50/50
10 x 100	MP – 4 K 8.8,10.9,12.9	80	50/50

We are fast. Receive an offer no later than 24 hours from placing of your request. The produced bolts will be marked by your logo. Invoice with due date also for the new customers. We communicate in english, russian and polish languages.
