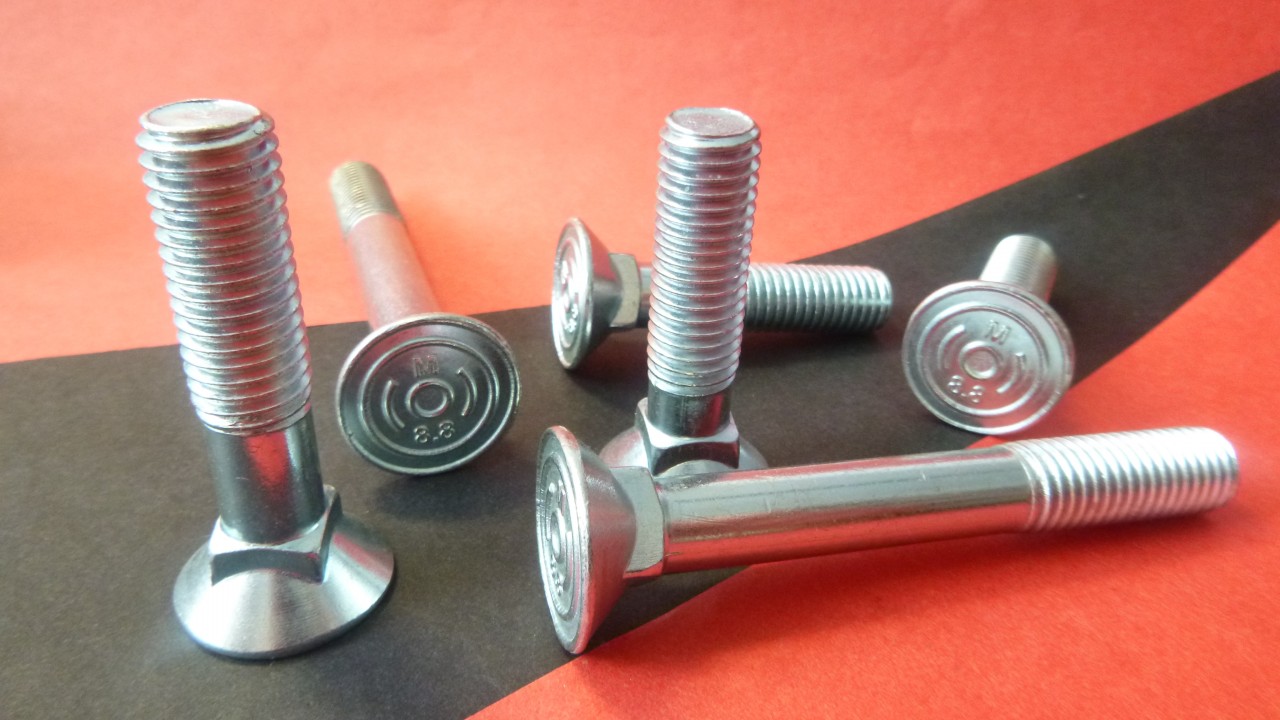

DIN 608 (8.8) Plough bolts with square neck, with nuts DIN 934 (8.8)

DIN 608 (8.8)

Plough bolts with square neck, with nuts DIN 934 (8.8)

THE MOST PARTICULAR USE

The bolts to machinery of LEMKEN

The most often used OEM code is Lemken 3015785 12 x 35.

Specifications

Packaging

Specification in PDF

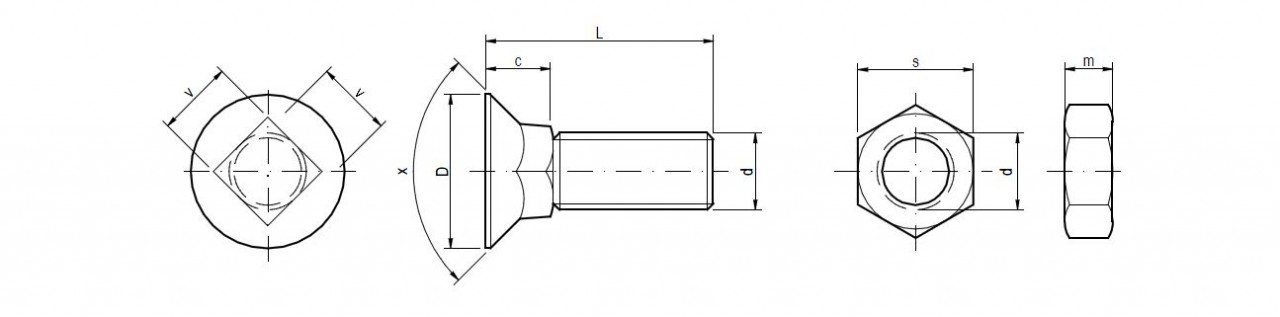

d	c	D	x	v	s	m
M 10	8,00	19,00	90°	10,00	17,00	8,00
M 12	10,50	24,00	90°	12,00	19,00	10,00
M 14	11,00	28,00	90°	14,00	22,00	11,00

The bolts DIN 608 do fit to machinery of OEM LEMKEN, ÖVERUM, PÖTTINGER, LANDSBERG, KVERNELAND, NIEMEYER, RABE, OVLAC, KÖCKERLING, FARMET, BEDNAR, ROSS, PHX, UNIA GRUDZIADZ, OPALL AGRI and many others.

Packed in boxes / pcs		Packaging without nuts	Packaging without nuts

10 x 25	DIN 608 (8.8) zinc plated	200	150/150
10 x 30	DIN 608 (8.8) zinc plated	150	100/100
10 x 35	DIN 608 (8.8) zinc plated	150	100/100
10 x 40	DIN 608 (8.8) zinc plated	100	100/100
10 x 45	DIN 608 (8.8) zinc plated	100	50/50
10 x 50	DIN 608 (8.8) zinc plated	100	50/50
10 x 55	DIN 608 (8.8) zinc plated	100	50/50
10 x 60	DIN 608 (8.8) zinc plated	150	100/100
10 x 65	DIN 608 (8.8) zinc plated	150	100/100
10 x 70	DIN 608 (8.8) zinc plated	150	100/100
10 x 75	DIN 608 (8.8) zinc plated	100	100/100
10 x 80	DIN 608 (8.8) zinc plated	100	50/50
10 x 90	DIN 608 (8.8) zinc plated	80	50/50
10 x 100	DIN 608 (8.8) zinc plated	80	50/50

12 x 30	DIN 608 (8.8) zinc plated	100	50/50
12 x 35	DIN 608 (8.8) zinc plated	100	50/50
12 x 40	DIN 608 (8.8) zinc plated	150	100/100
12 x 45	DIN 608 (8.8) zinc plated	150	100/100
12 x 50	DIN 608 (8.8) zinc plated	100	100/100
12 x 55	DIN 608 (8.8) zinc plated	100	50/50
12 x 60	DIN 608 (8.8) zinc plated	100	50/50
12 x 65	DIN 608 (8.8) zinc plated	90	50/50
12 x 70	DIN 608 (8.8) zinc plated	80	50/50
12 x 75	DIN 608 (8.8) zinc plated	80	50/50
12 x 80	DIN 608 (8.8) zinc plated	60	50/50
12 x 85	DIN 608 (8.8) zinc plated	60	50/50
12 x 90	DIN 608 (8.8) zinc plated	50	50/50
12 x 100	DIN 608 (8.8) zinc plated	50	50/50

14 x 30	DIN 608 (8.8) zinc plated	50	50/50
14 x 35	DIN 608 (8.8) zinc plated	50	50/50
14 x 40	DIN 608 (8.8) zinc plated	50	50/50
14 x 45	DIN 608 (8.8) zinc plated	50	50/50
14 x 50	DIN 608 (8.8) zinc plated	50	50/50
14 x 55	DIN 608 (8.8) zinc plated	50	50/50
14 x 60	DIN 608 (8.8) zinc plated	50	50/50
14 x 65	DIN 608 (8.8) zinc plated	50	50/50
14 x 70	DIN 608 (8.8) zinc plated	50	50/50
14 x 75	DIN 608 (8.8) zinc plated	50	50/50
14 x 80	DIN 608 (8.8) zinc plated	50	50/50

We are fast. Receive an offer no later than 24 hours from placing of your request. The produced bolts will be marked by your logo. Invoice with due date also for the new customers. We communicate in english, russian and polish languages.
